Shower valve and cartridge repair

Common shower valve problems

• A shower head or tub spout that keeps dripping after it is off.
• Water that only runs cold, or swings hot and cold when someone flushes.
• A handle that is stiff, loose or spins without stopping.
• Low flow from the shower but normal flow elsewhere.
• A diverter that leaks water from the spout during a shower.

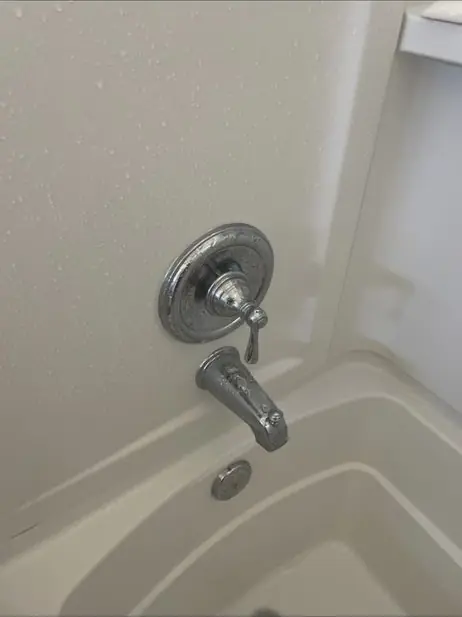

Single-handle valves

Most single-handle showers from the last few decades use a replaceable cartridge from one of the big brands. Hard water wears seals and clogs the pressure-balancing spool, which causes drips and temperature swings. We identify the brand from the trim, shut off the water, pull the old cartridge, clean the valve body and install the matching new cartridge. Then we test hot, cold and temperature limit settings.

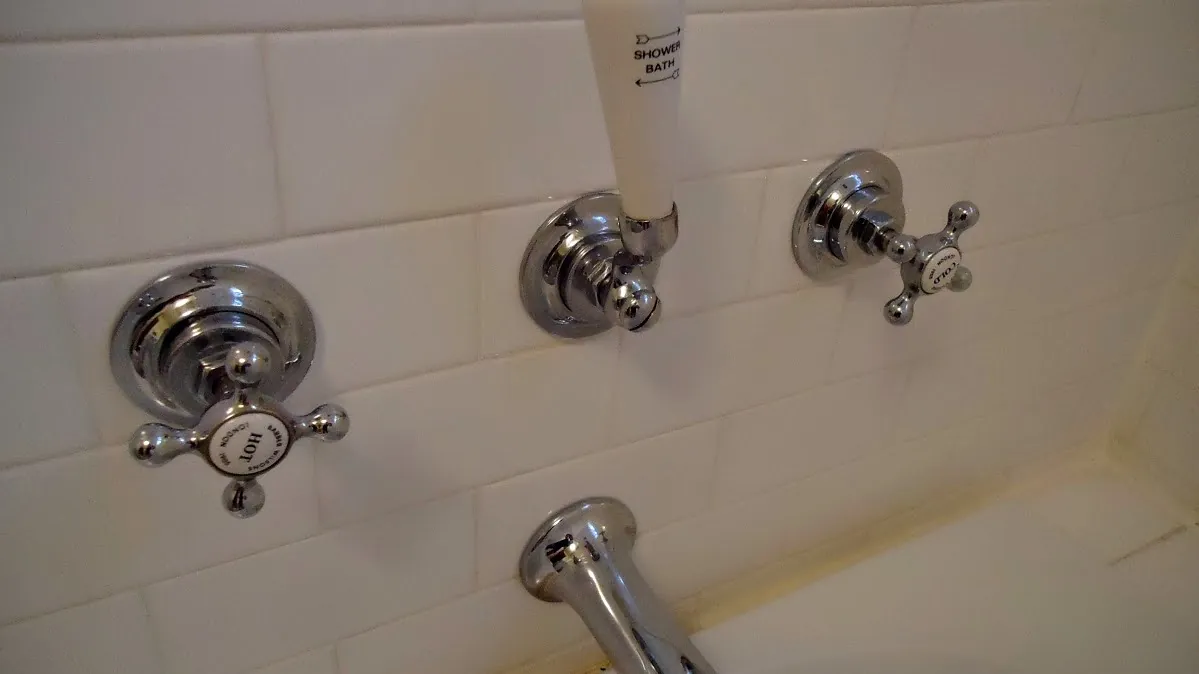

Two- and three-handle valves

Older homes often have separate hot and cold handles, and sometimes a center diverter. These use stems with washers and seats. We replace washers, seats and stems through the existing openings, and add extension sleeves when tile has been built out. When stems are no longer made, we talk through options before doing anything to the wall.

New trim on an existing valve

If you want a fresh look without opening the wall, we can often install a new trim kit from the same manufacturer as the existing valve body. That changes the handle, escutcheon and spout while keeping the plumbing behind the tile in place.

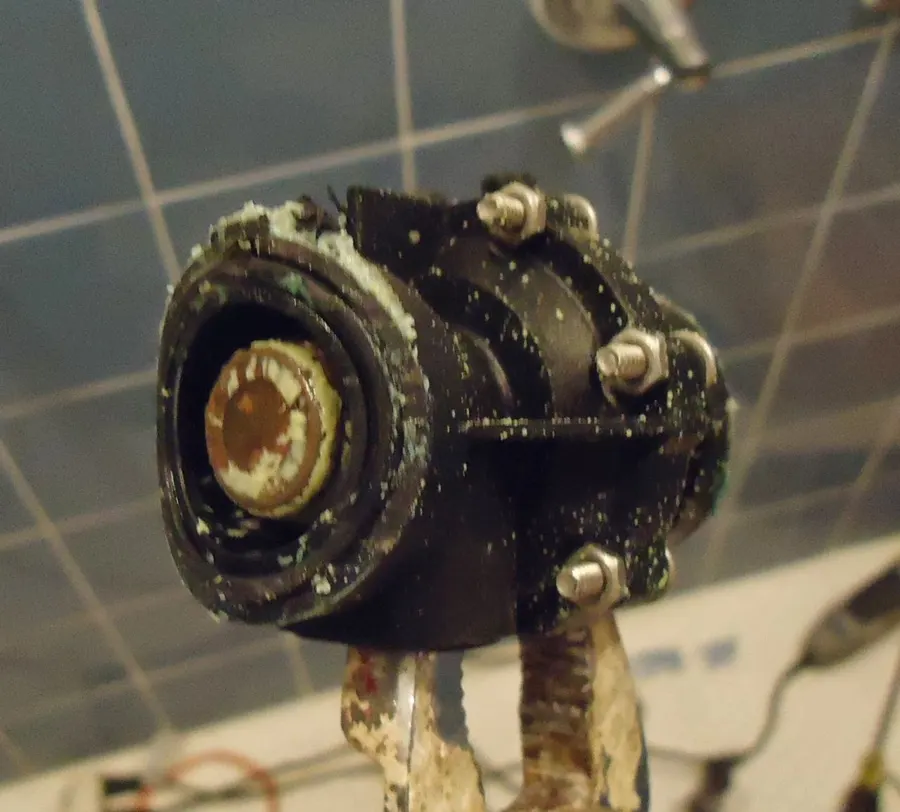

When the valve itself needs replacing

If the valve body is cracked, corroded beyond repair or no longer supported, replacing it means opening the wall. We can do that from a closet behind the shower when there is one and set an access panel. When access is only through tile, we explain the scope before starting.

Getting the right part the first time

Shower valves look similar from the outside but use very different internals. A photo of the handle, the cover plate and any logo usually tells us the maker. If the trim has no markings, we pull the handle on the first visit, identify the cartridge and, when the part is not stocked locally, order it and come back. Doing it that way avoids forcing the wrong part into a valve and damaging the body.

While the water is off, we also look at the shower head and arm, the tub spout and the drain. Replacing a corroded shower arm or a worn spout diverter at the same time is quick, and we always stop and ask before extra work.

Why valves wear out here

Hard water is the main reason. Calcium and magnesium deposit on the moving parts inside a cartridge, so the seals wear unevenly and the pressure-balancing spool sticks. The result is a drip that gets worse over months, a handle that takes two hands, or water that never quite gets hot.

Old rubber washers in compression valves harden and crack with age and heat. Debris from older galvanized supply pipes can also lodge in a cartridge inlet and cut flow to a trickle on one side.

Drips are not trivial. According to EPA WaterSense, "the average household's leaks can account for more than 9,300 gallons of water wasted every year," and leaking valves are among the common types it lists.

Pressure-balance versus thermostatic

A pressure-balancing valve keeps the hot-to-cold ratio steady when pressure changes, such as when a toilet is flushed. A thermostatic valve holds a set temperature and often has separate volume control. Both use replaceable parts, but they are not interchangeable, and thermostatic cartridges cost more. Knowing which you have tells us which part to bring and how to set the temperature limit stop afterward, so the hottest position stays comfortable.

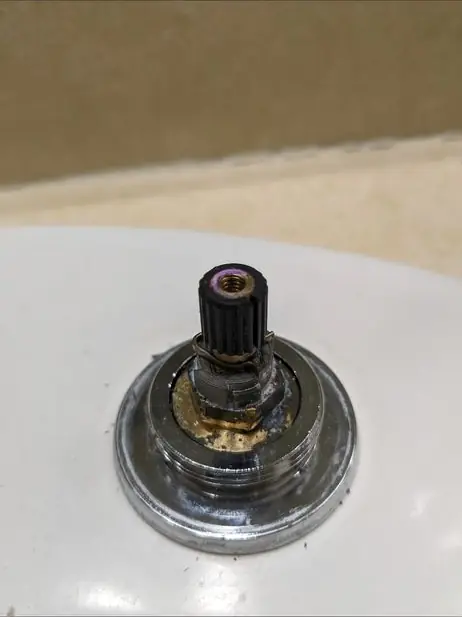

How a cartridge job goes

1. Shut off water at the valve stops if there are any, or at the main.
2. Remove the handle and trim, and photograph the setup.
3. Pull the retaining clip or nut and the old cartridge, using a puller if it is stuck.
4. Clean scale out of the valve body and check the seats.
5. Install the new cartridge with the hot side oriented correctly and set the limit stop.
6. Reinstall trim with new seals and test for drips, temperature and diverter function.

What is outside our scope

A cracked valve body behind tile with no access from behind, a valve that needs to move, or a shower that needs new rough plumbing is beyond a cartridge repair. Rebuilding a whole shower is outside our scope. We tell you which case you have before any tile comes off.

Tub spouts and diverters

Tub spouts attach by slip-fit with a set screw or by thread. When the diverter in the spout wears, water leaks from the spout during showers. We identify the type and replace it with a matching spout so it seals against the wall.

Shower heads and arms

A new shower head is the simplest upgrade. A cracked or corroded shower arm can be replaced from the front with care so the fitting inside the wall is not twisted. Handheld heads need a diverter or a separate holder, and a slide bar can double as a support if it is anchored into framing.
